카메라 모듈

카메라 모듈

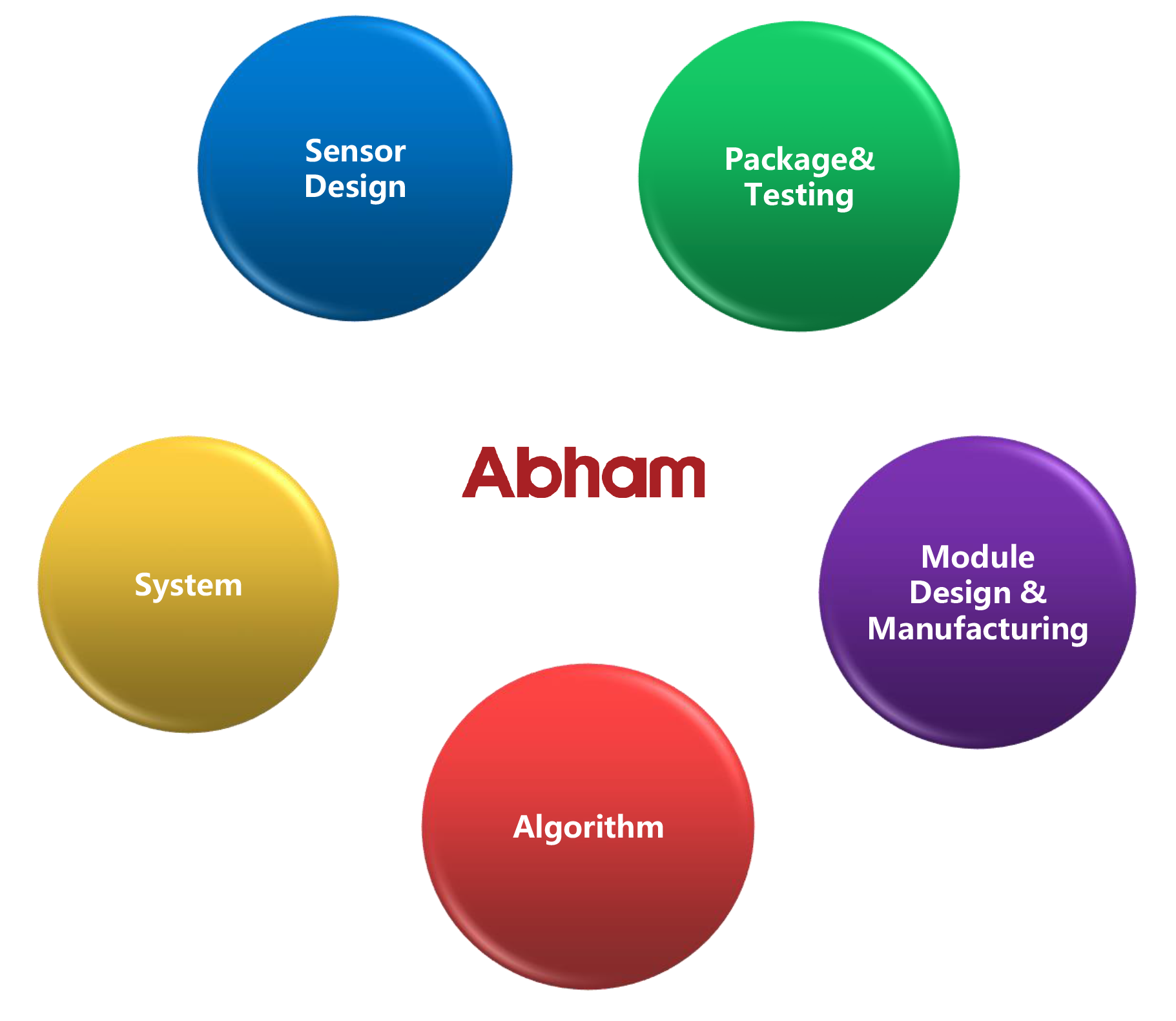

Product Ecosystem

2D/3D vision algorithm

2D/3D Sensor Rx

Laser projector Tx

Product Ecosystem


2D / 3D vision algorithm

2D / 3D Sensor

Rx

Laser projector

Tx

R&D ability

Optical Design

  • DOE Design
  • Optical collimator design
  • Laser galvanometer design

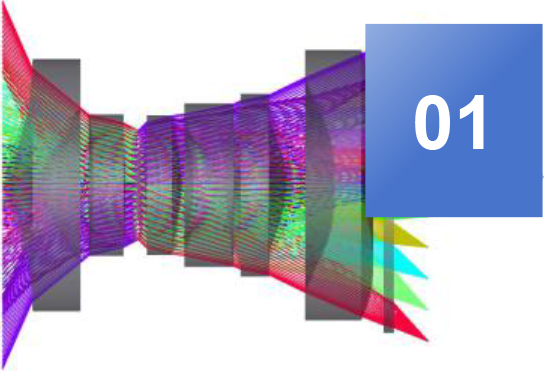

  • Camera optical system design

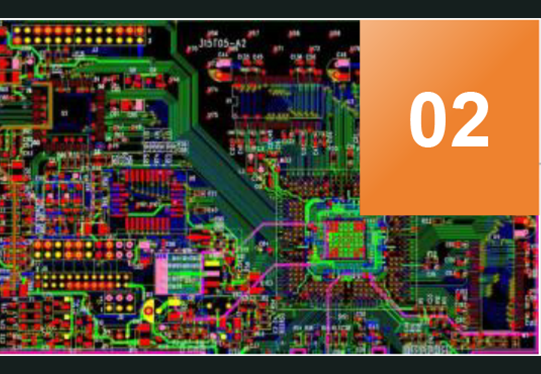

Hardware Development

  • AI chip system-level hardware development
  • FPGA system-level hardware development
  • USB, WIFI, Ethernet communication hardware development

Embedded Development

  • Hisilicon, Rockchip, Sigmastar, Ingenic Multi-platform embedded development

Algorithm development

  • 3D high-precision computational imaging
  • Super resolution algorithm

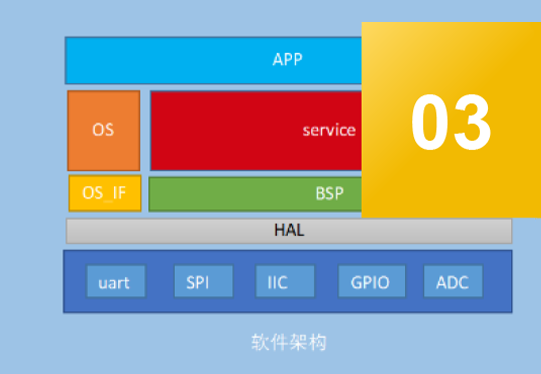

Application Software Development

  • C++, C#, QT multi-language
  • Win, Linux, ROS, Android  ,RTOS Multi-os software development

Image Tuning

  • MTK, Qualcomm, Hisilicon, Sigmastar, Rockchip IQ tuning

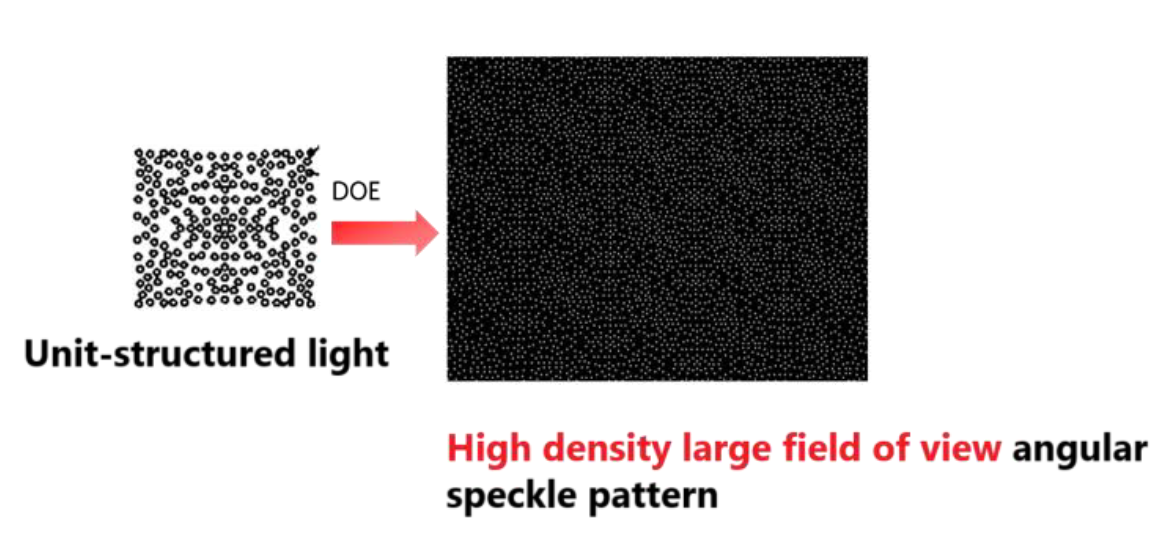

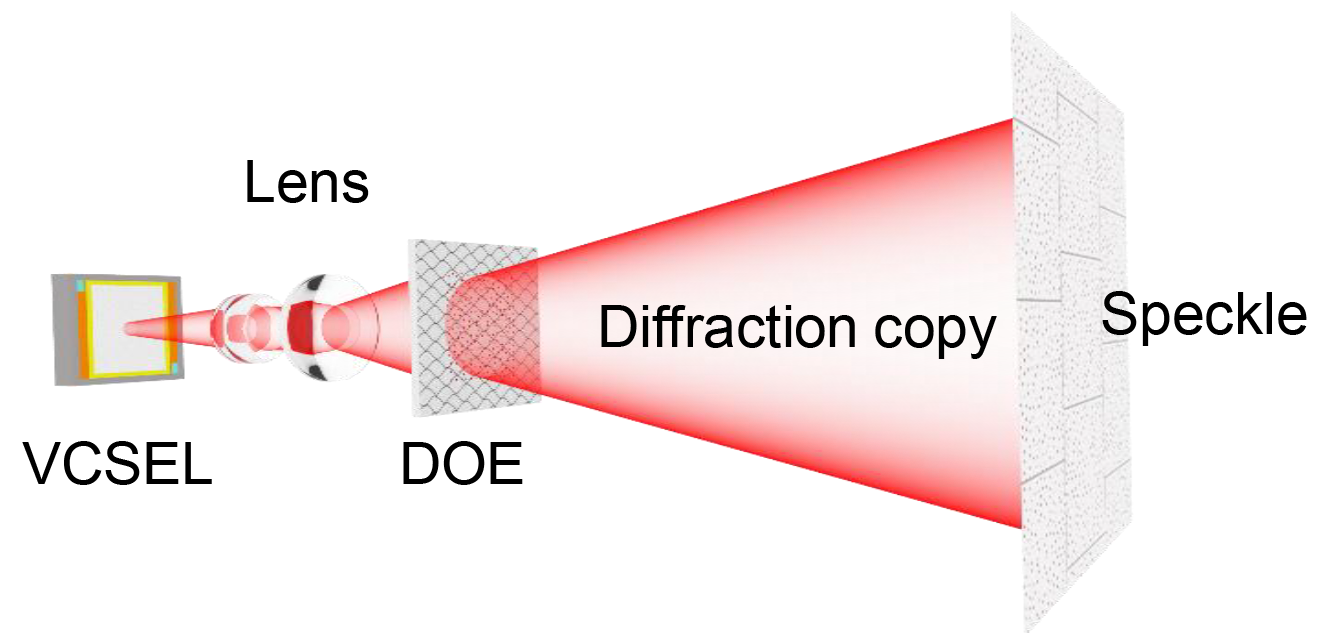

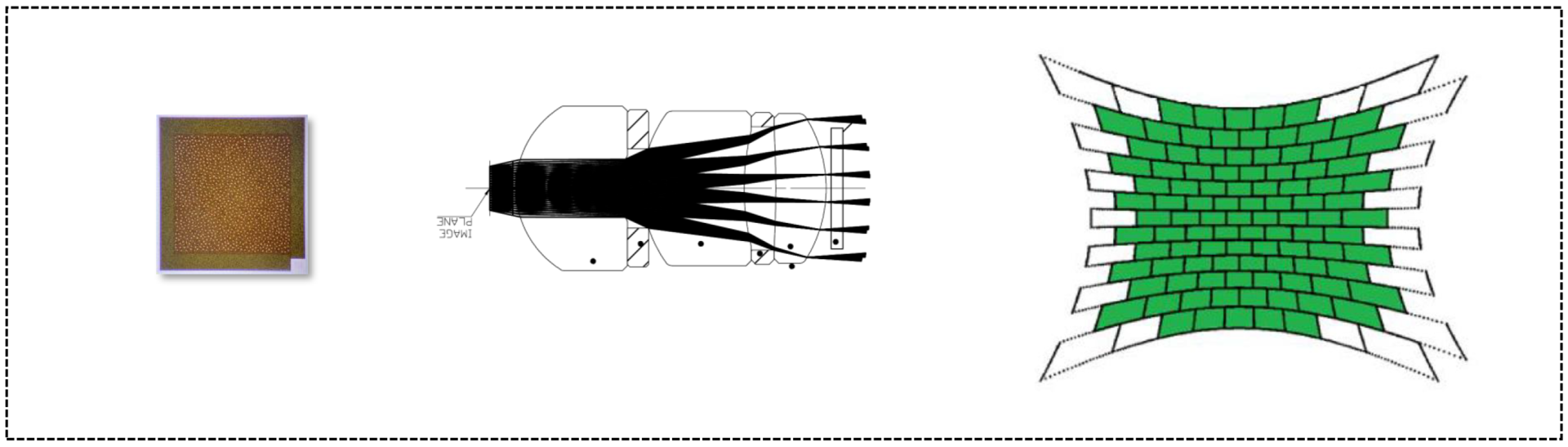

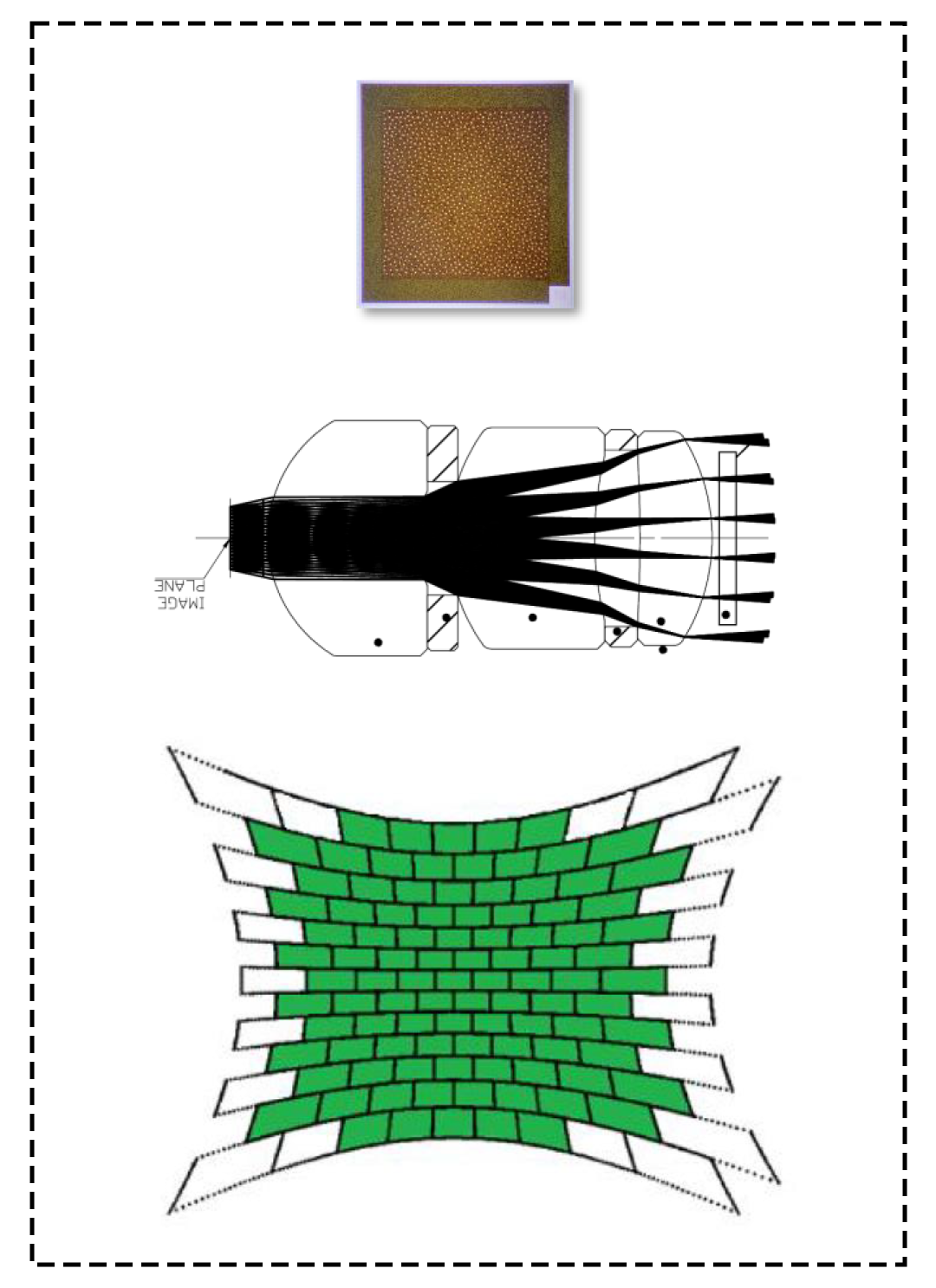

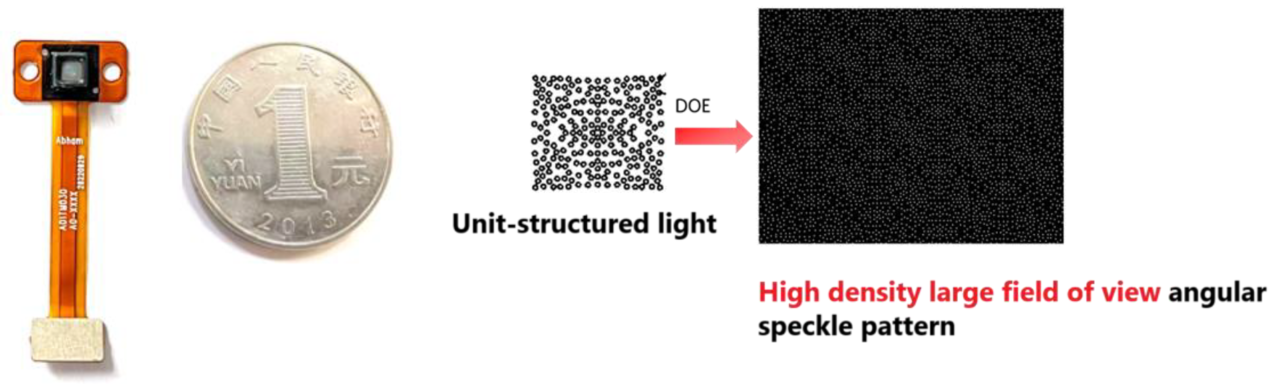

Speckle projectors - Design examples

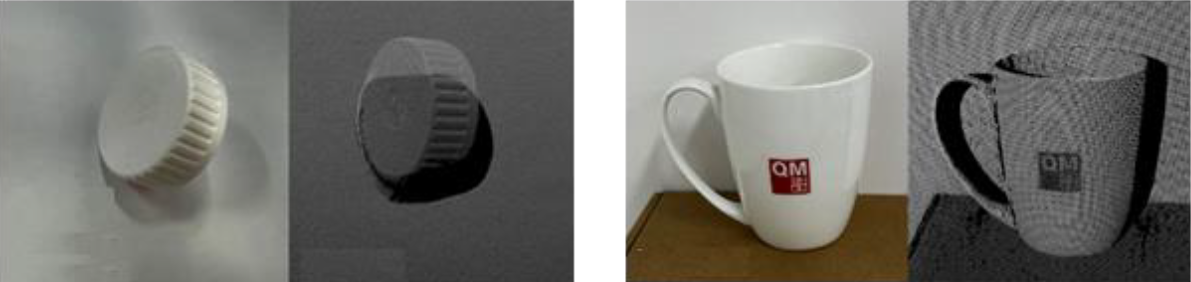

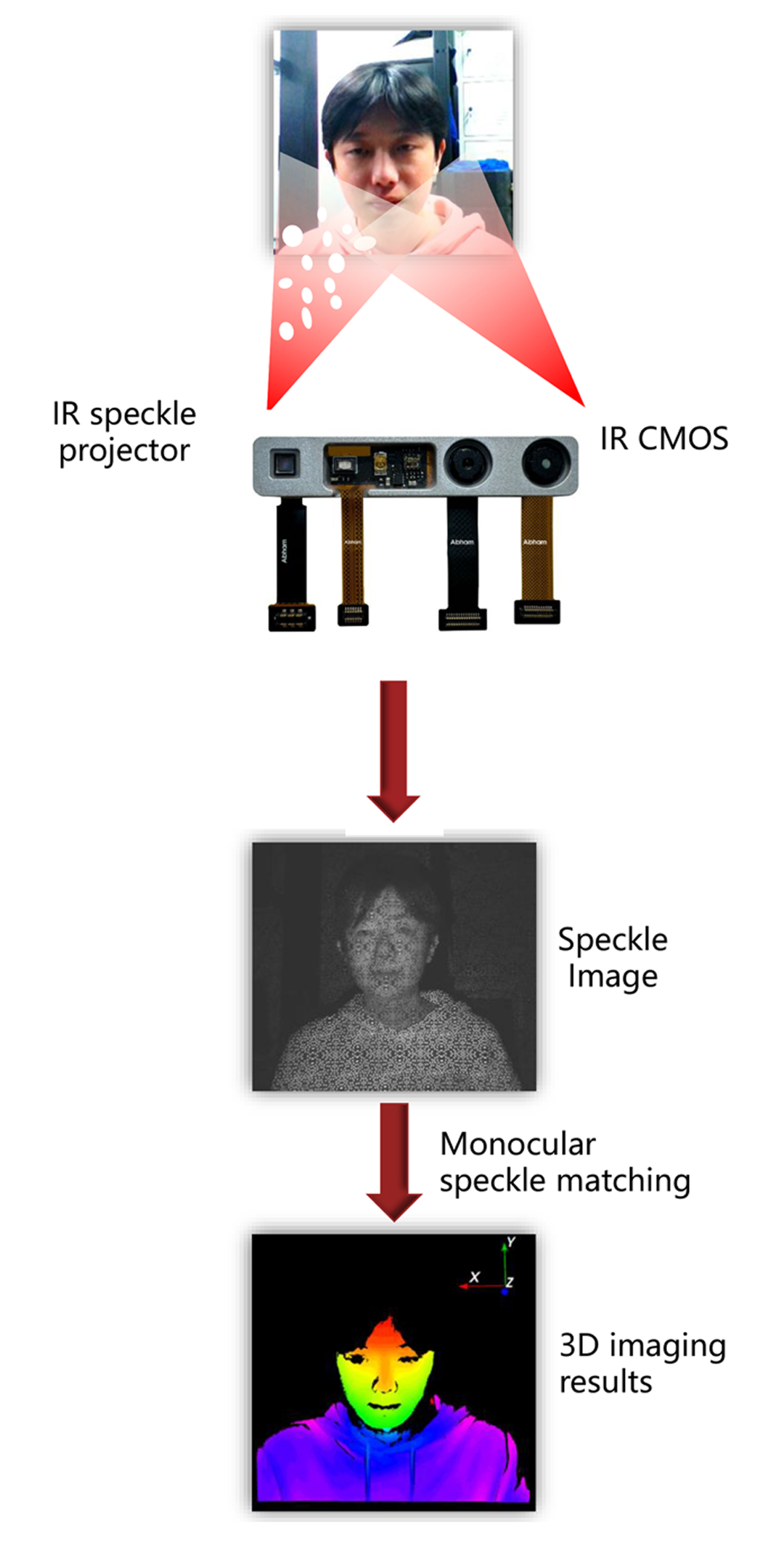

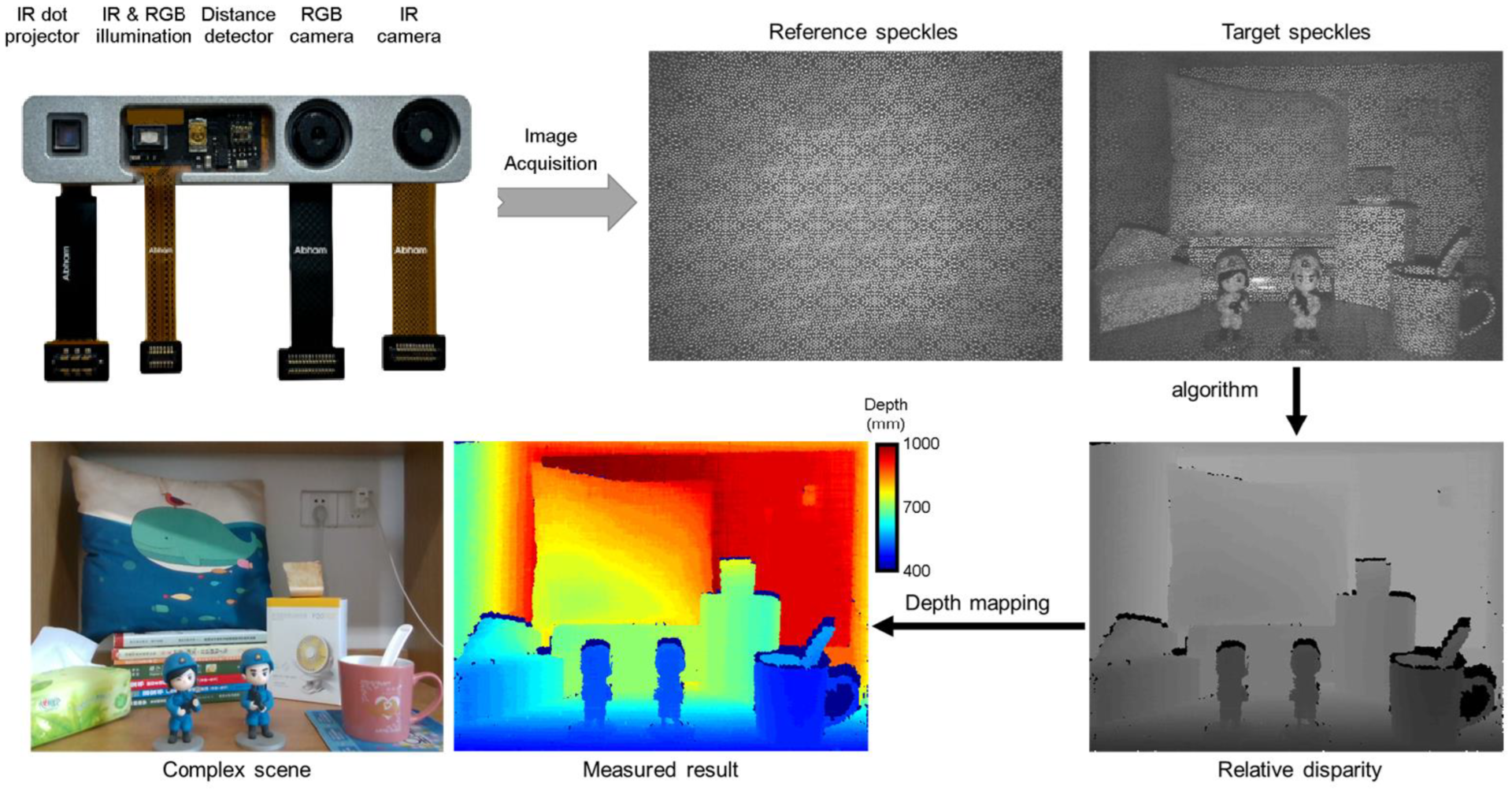

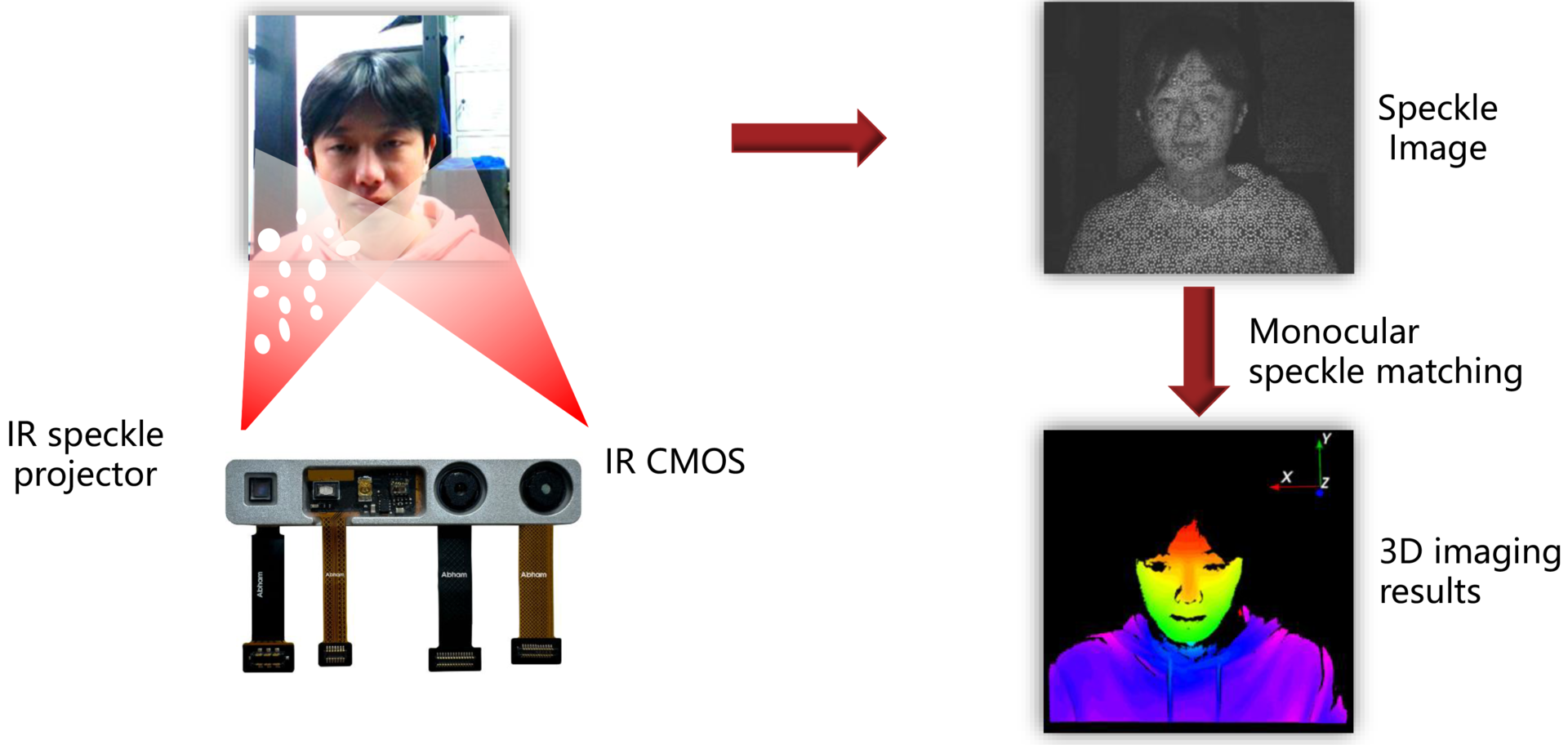

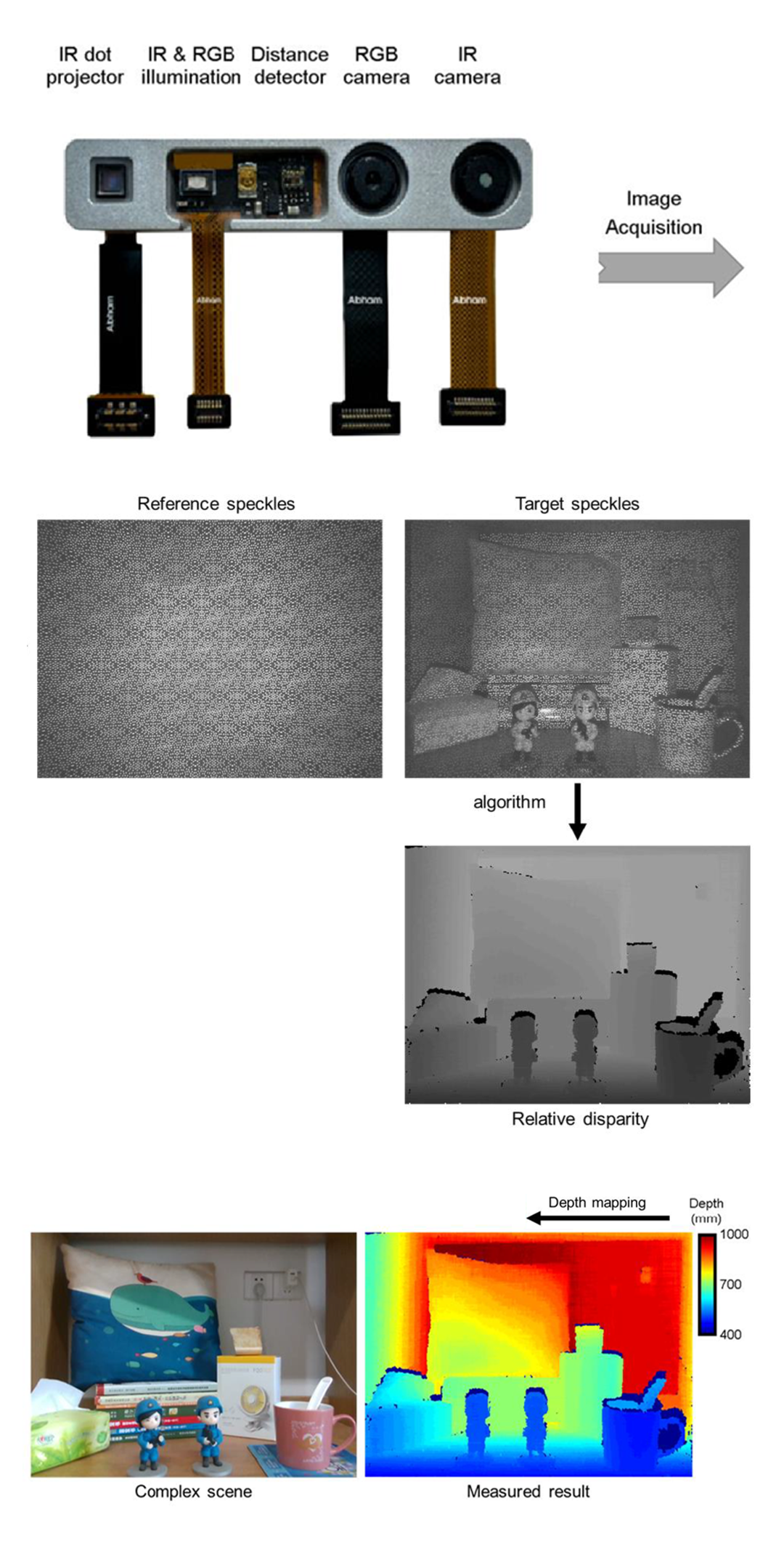

Monocular Structured Light with Speckle - Development Example

Monocular Structured Light with Speckle -Development Example

Binocular Speckle Structured Light - Development Example

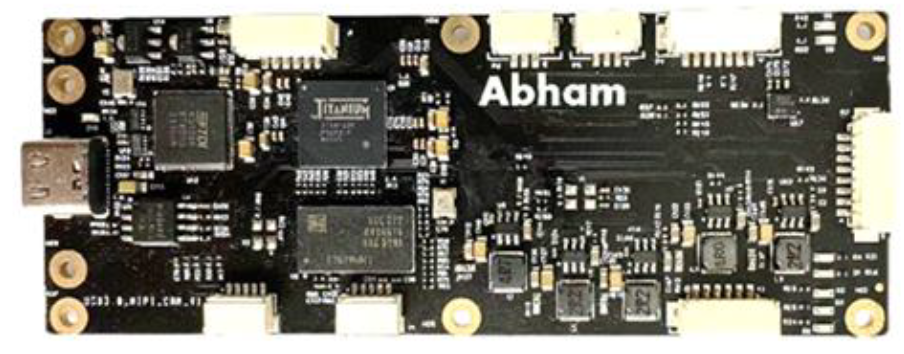

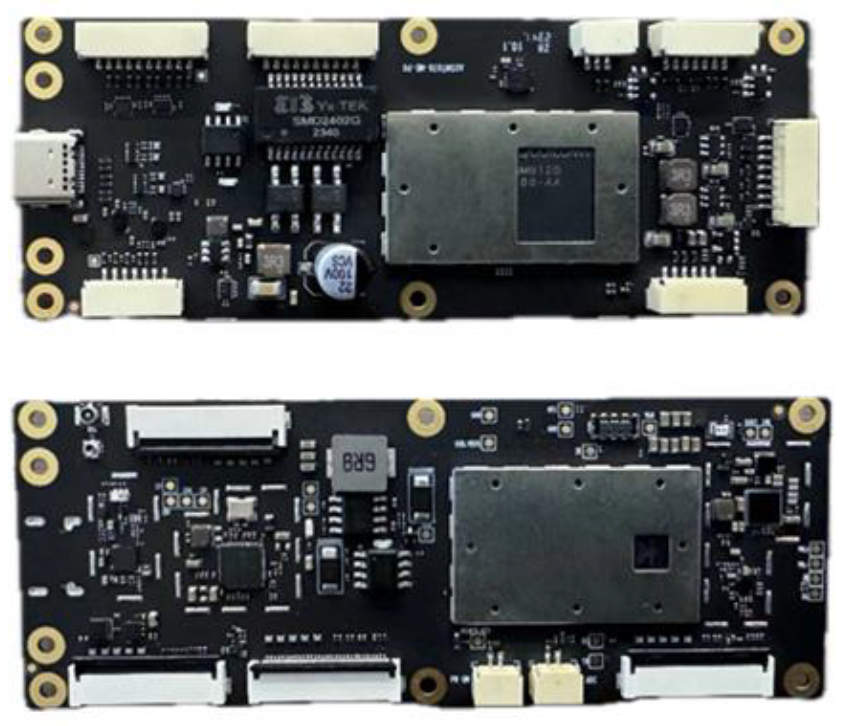

FPGA Camera main board

Qualcomm 660 Camera main board

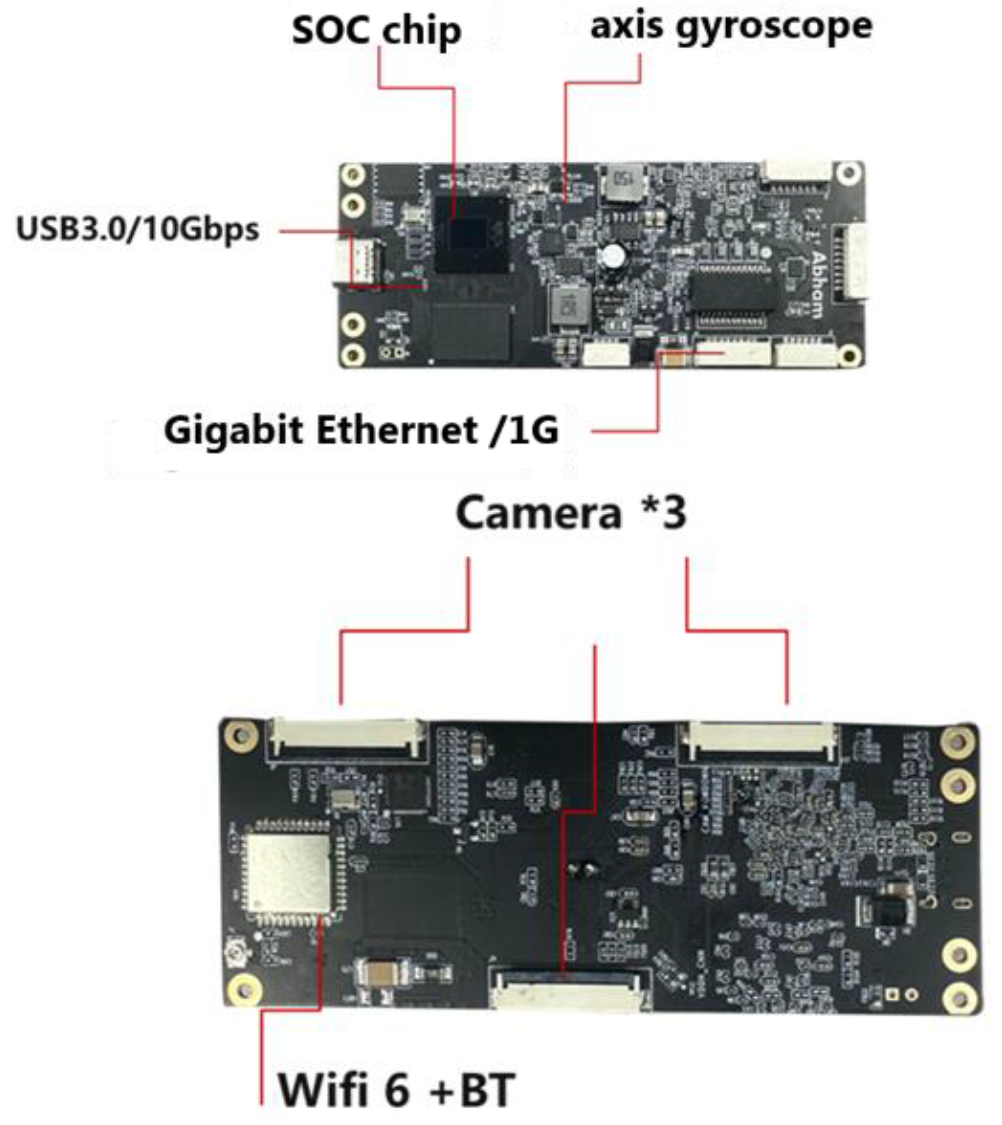

AI SOC Camera main board

Intelligent hardware - development examples

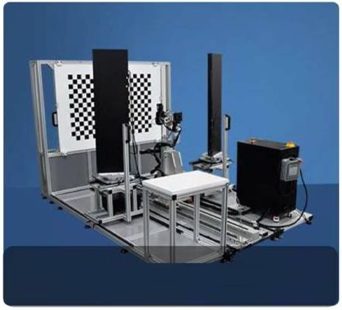

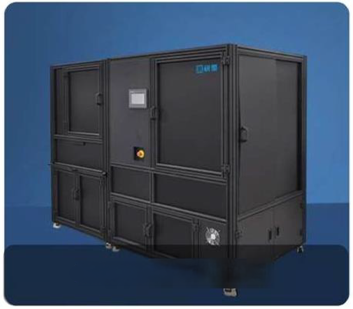

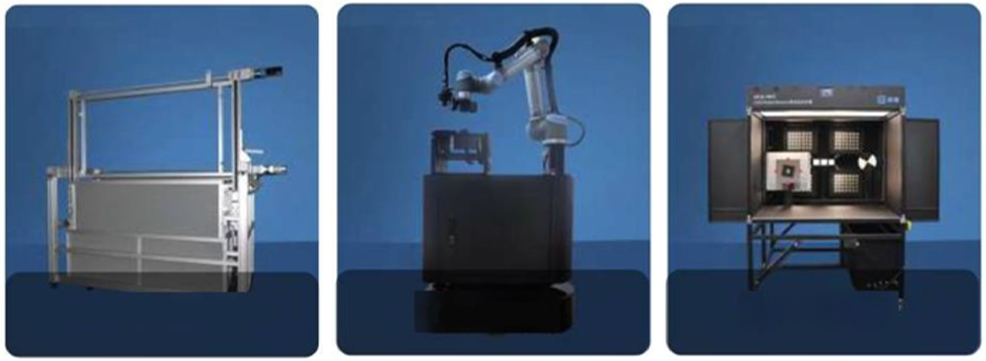

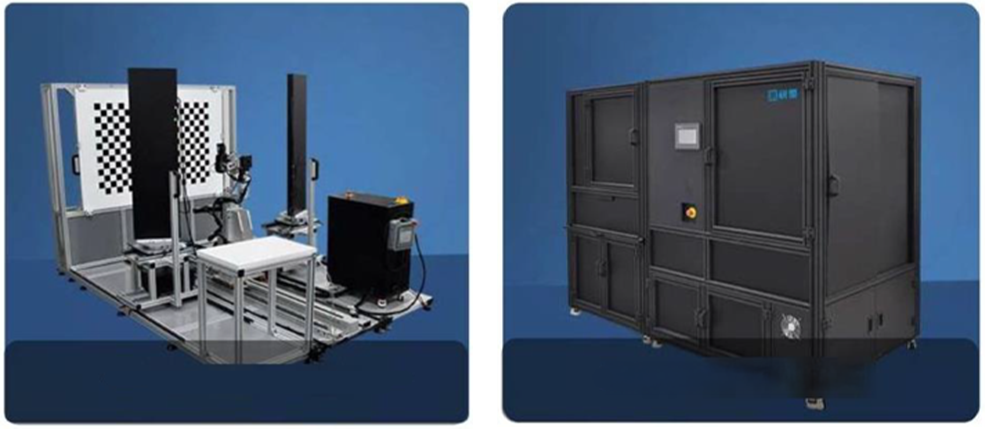

Automatic program - controlled internal parameter calibration system

Glare test system P2020 standard

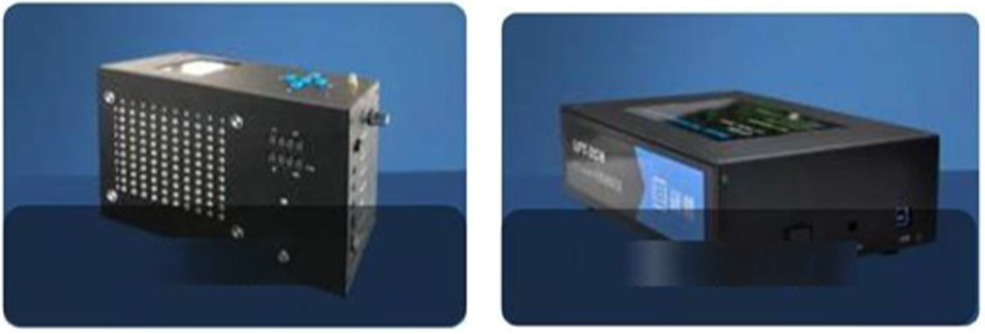

Time tester

High speed stroboscopic analyzer

Automatic card switching bracket

Camera robot

Camera synthesizer

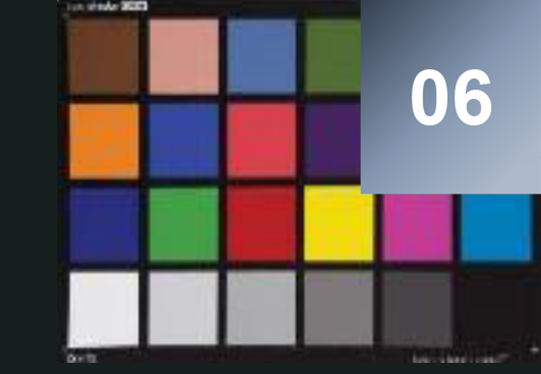

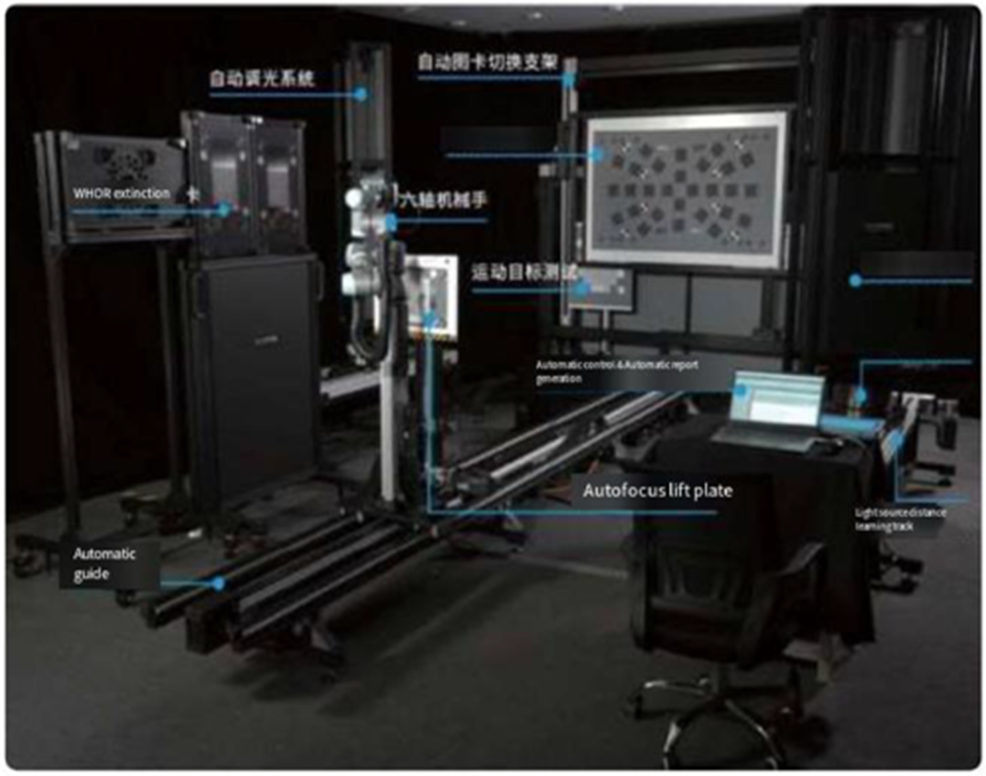

Image Quality Tuning - Laboratory resources

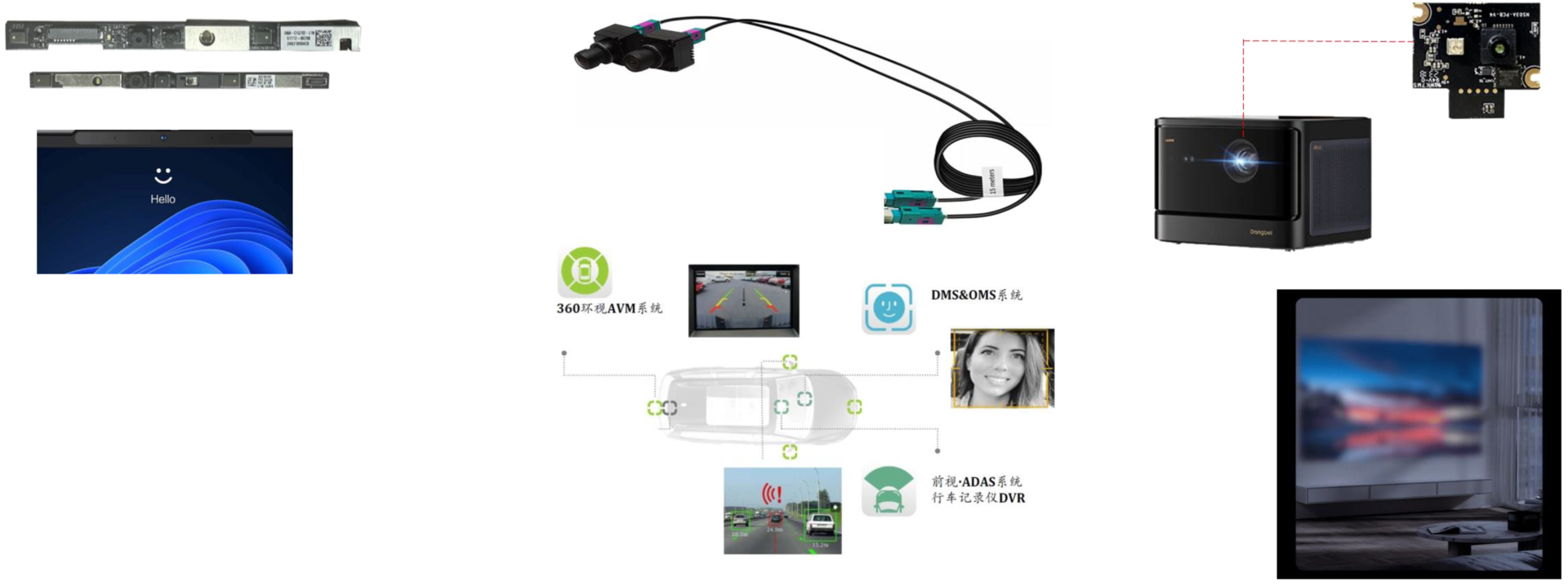

Image Quality Tuning - development example

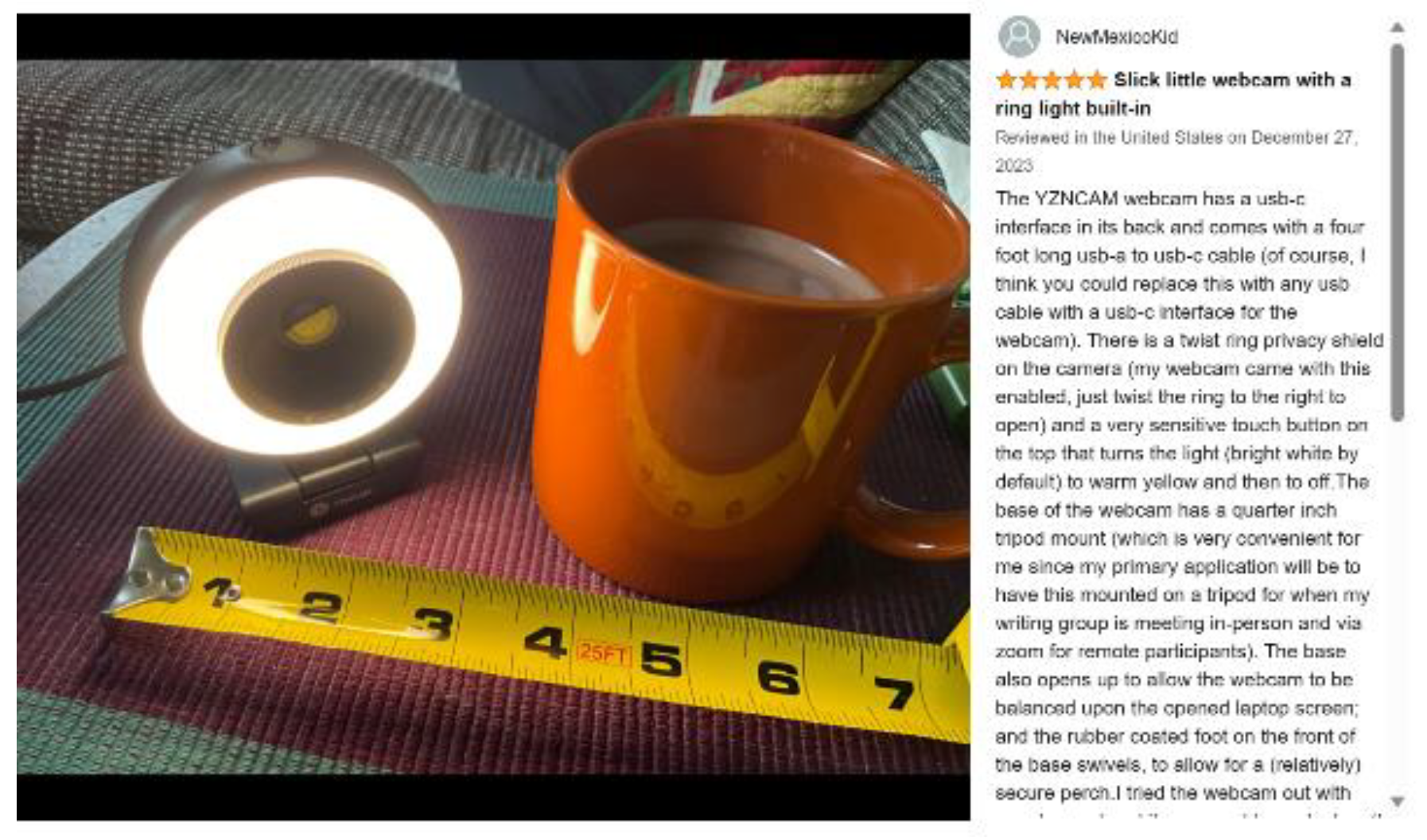

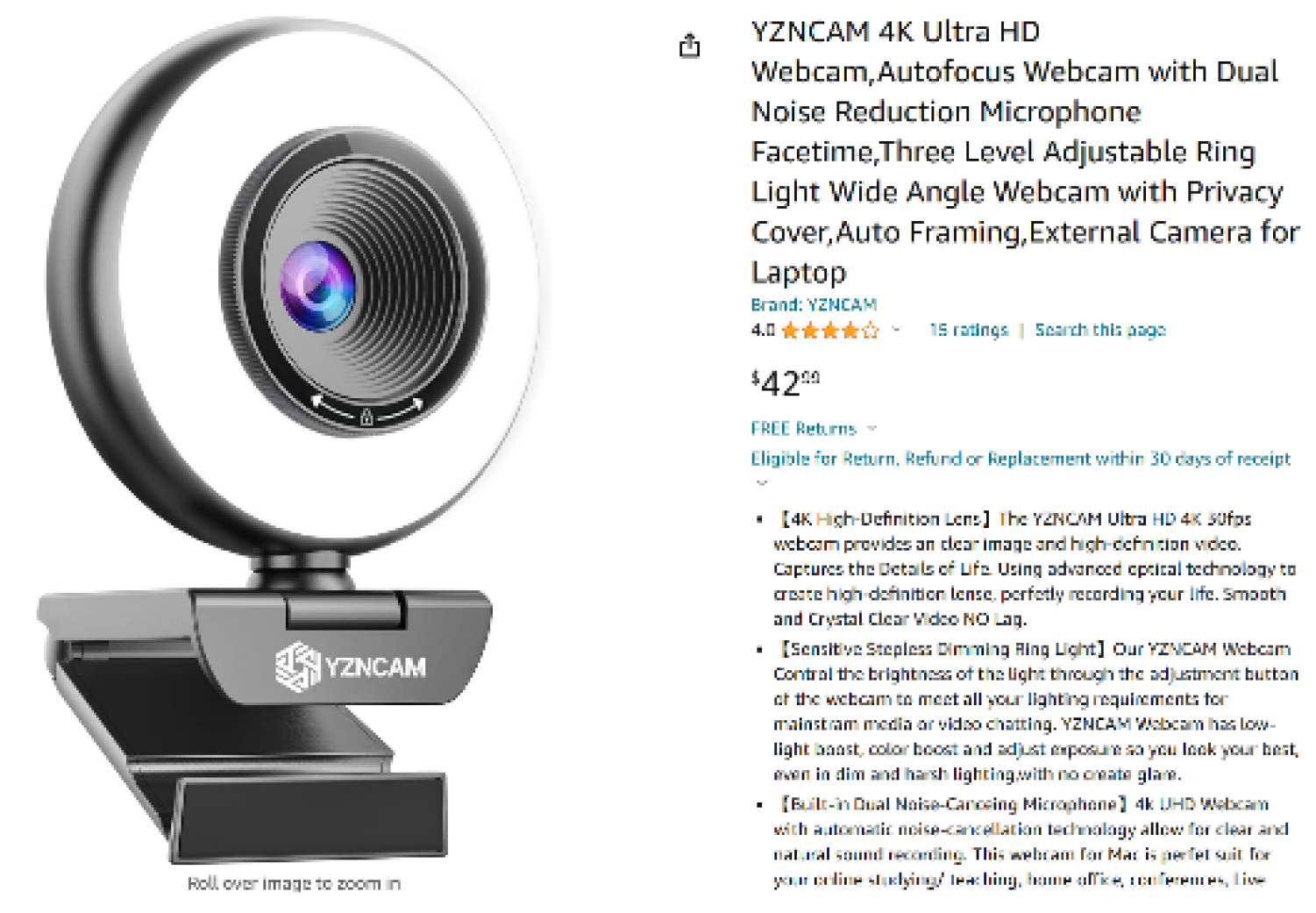

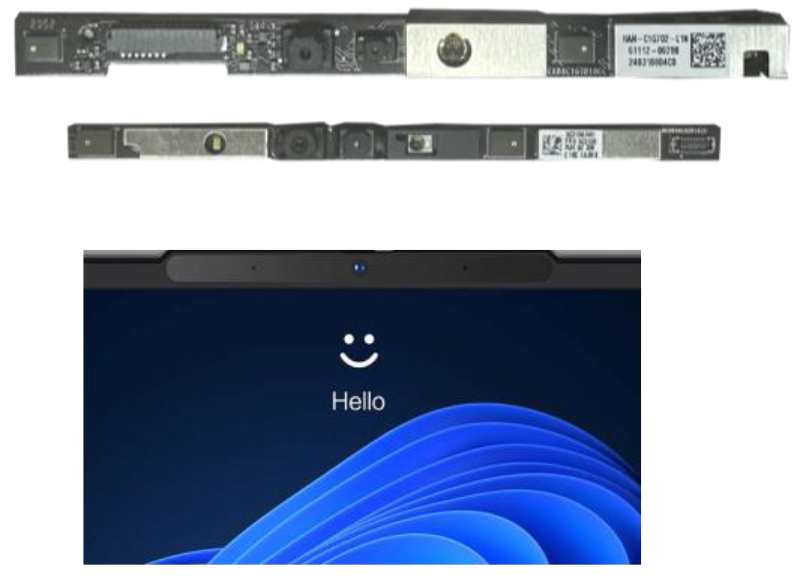

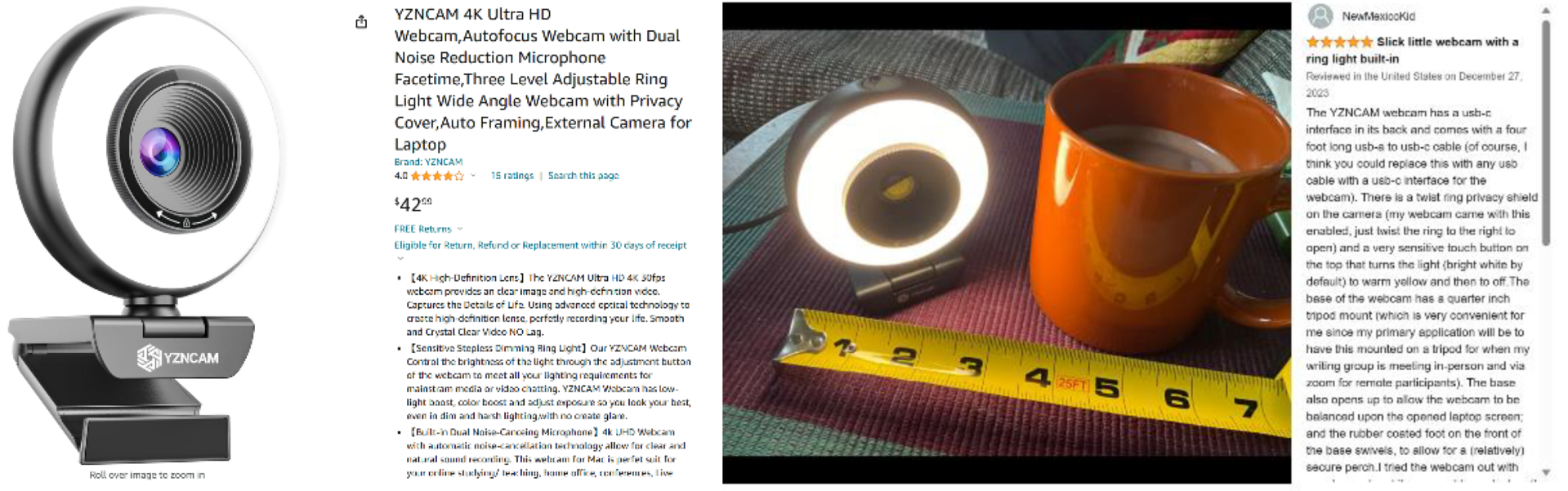

Web Cam : 4K/2K , Win Hello,

AI Cam : Wifi Cam , Smart Cam

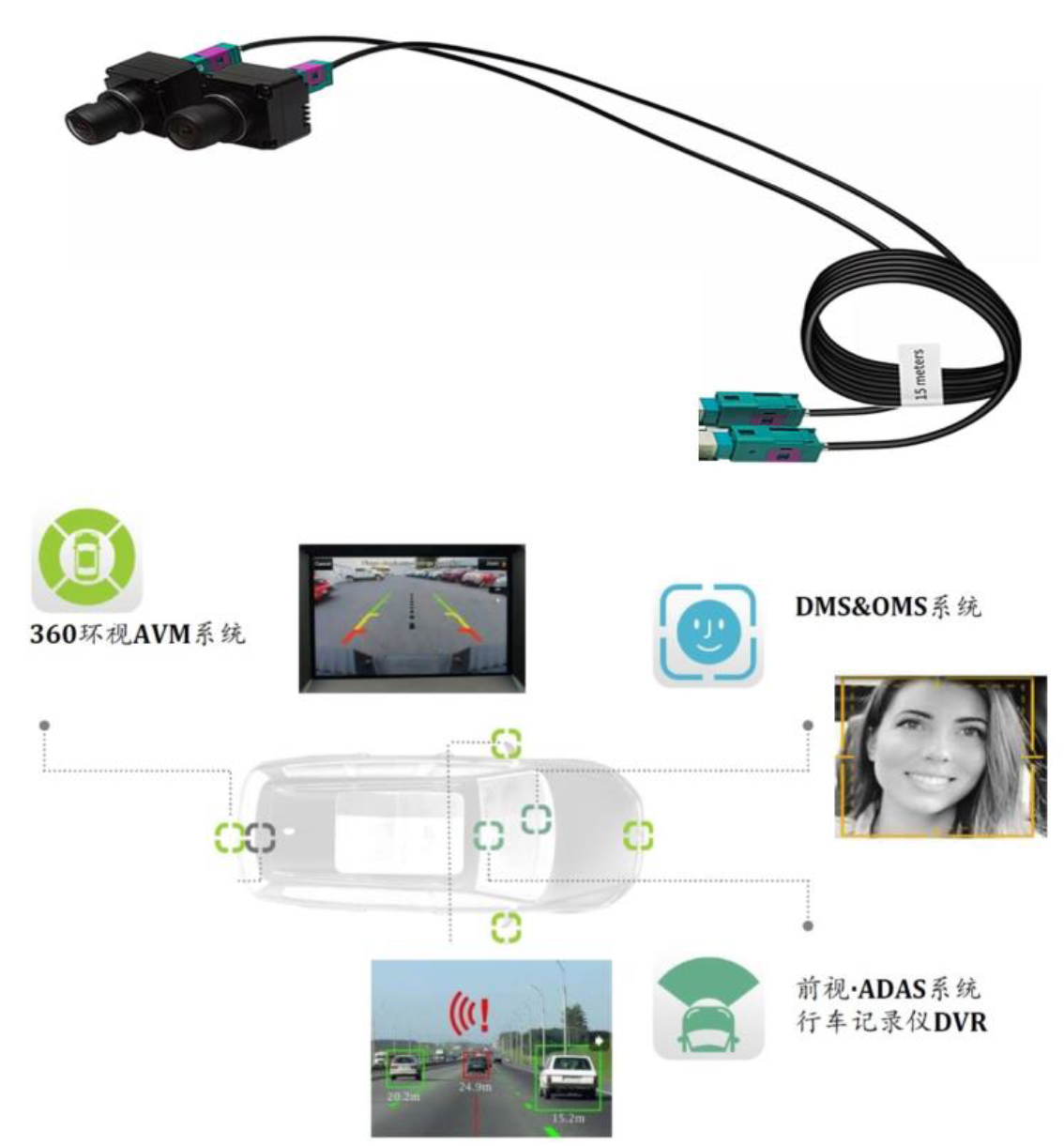

GMSL Camera:  ADAS, Panoramic Camera, DMS

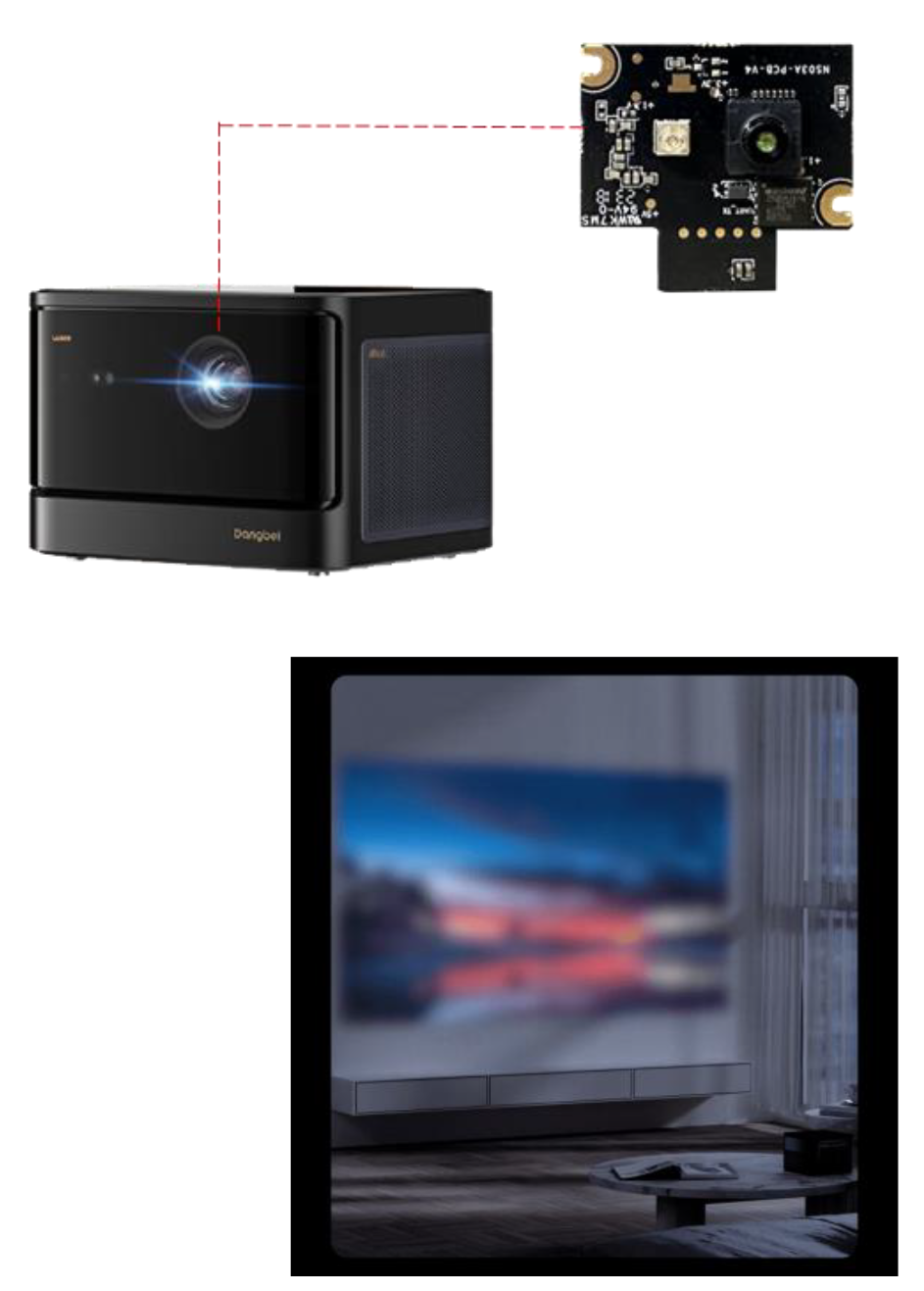

3D ToF Camera : Smart projection,

with autofocus

Main product

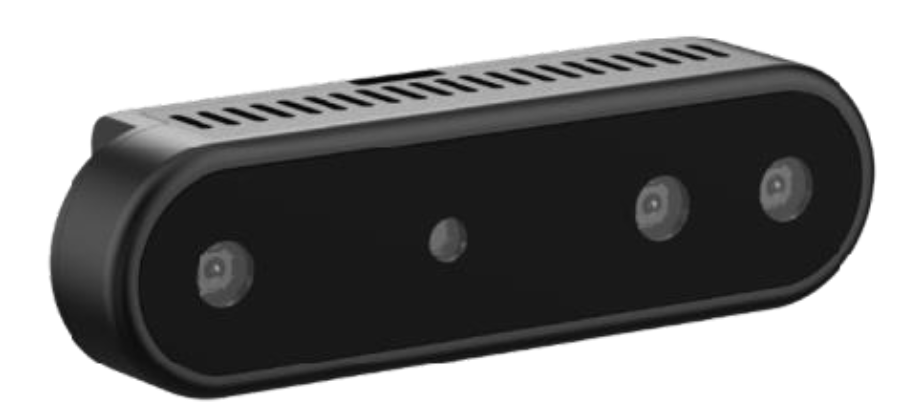

Metasense

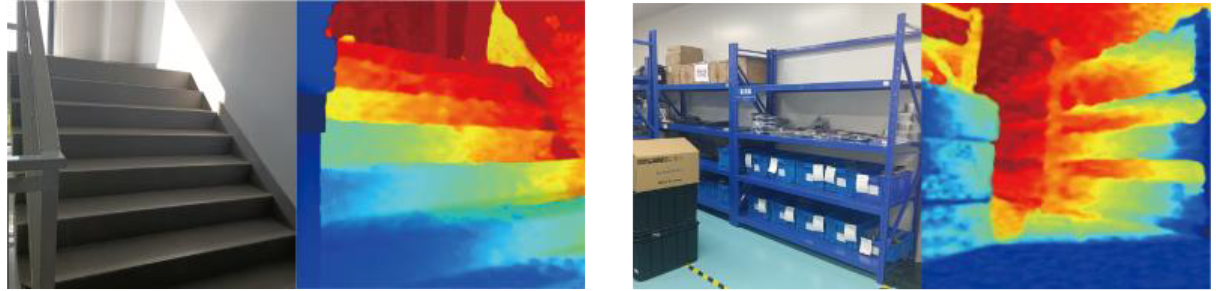

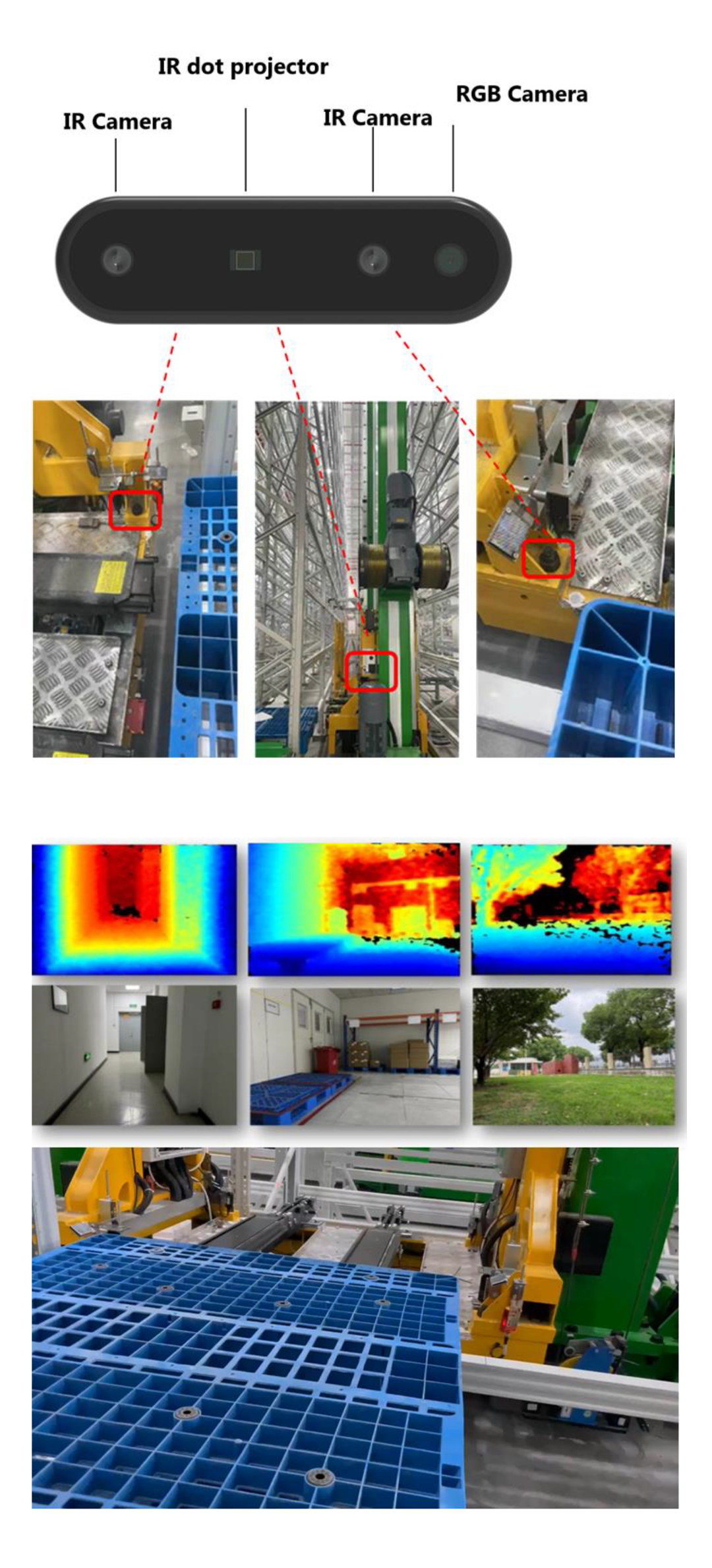

▶ Depth

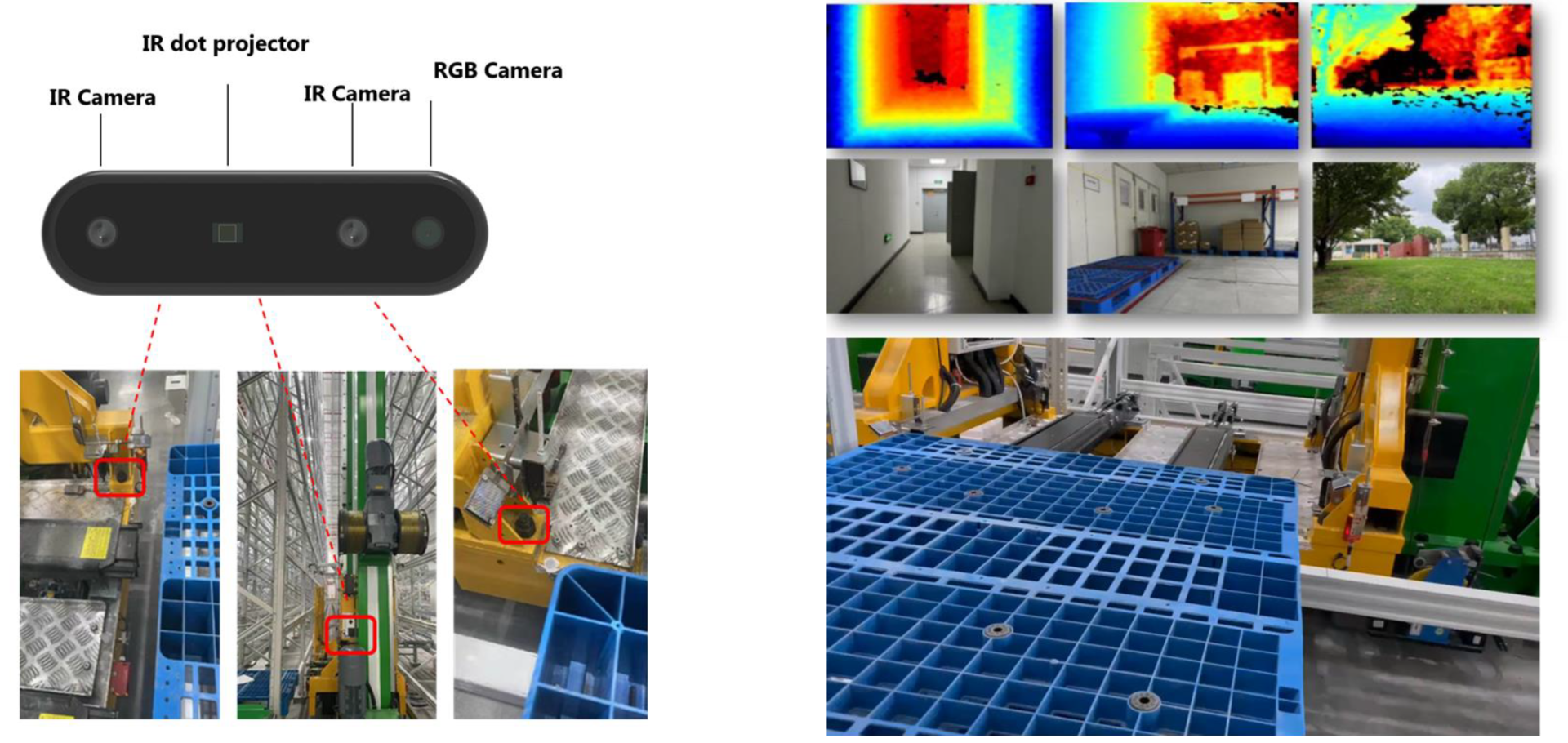

▶ application scene

Robot

AGV

Smart obstacle avoidance

▶ Parameters

Categories
Specifications
Infrared camera
FOV:81 ° *68 ° *46 ° (D*H*V)
LED lights
940nm
Laser projector
30,000 points, Random
Transmission interface
30Pin BTB CONN
Scope of work
30cm-120cm
Resolution
1280*800@30fps

Face recognition
Recognition speed :0.3S@ hot start,0.7S@ cold start
Recognition distance :0.3m∽1.2m
Live detection :TAR 98%@FAR 1/100,000
Face comparison :TAR 98%@FAR one part per million
Data interface
MIPI
Trigger mode
From 3.6 V to 5.5 V
Data type
Average power consumption 1W
Power & communication
USB2.0
Operating system support
RTOS
Operating temperature
Can work temperature -20℃ ~ 70℃, recommended 10℃ ~ 60℃
Security
Laser Class 1
Dimension
139 x 61.5 x 45mm

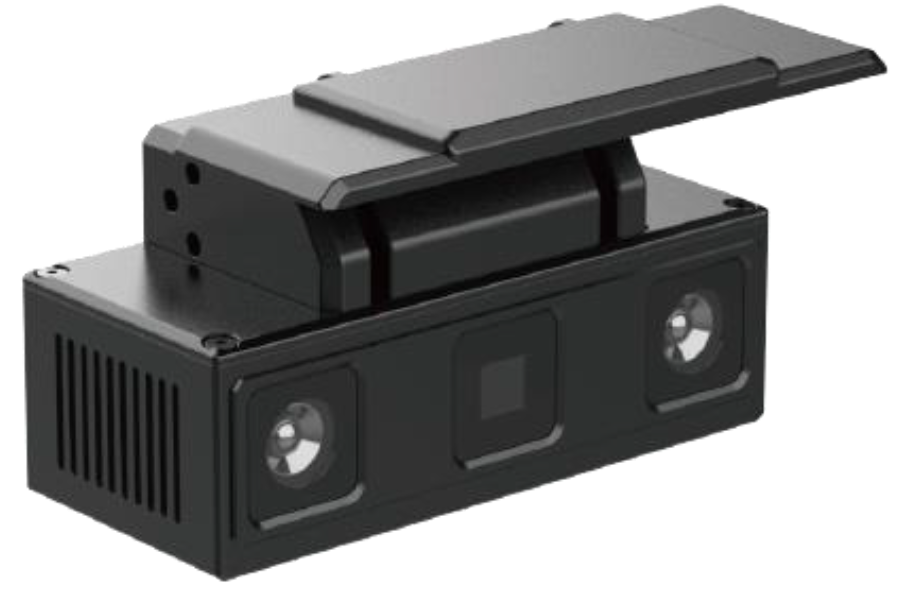

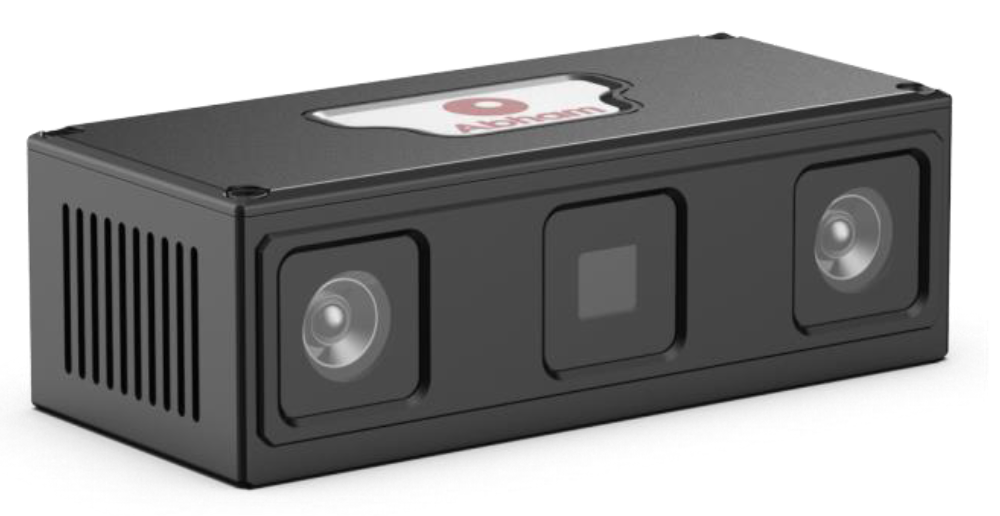

Nano Pro

▶ Scene View

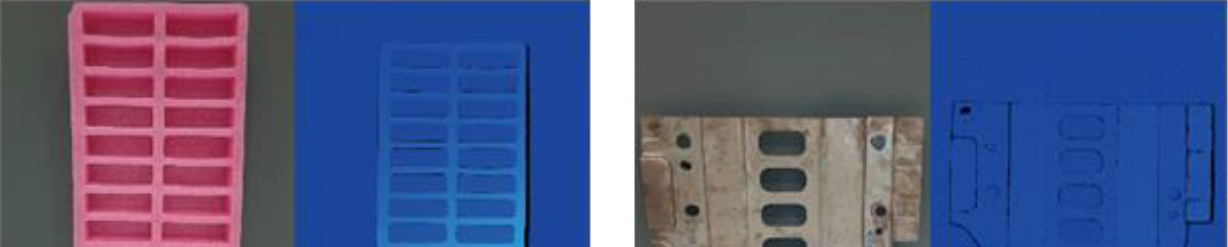

▶ Point cloud

▶ application scene

Laser Welding

Automotive manufacturing

Aerospace

▶ Parameters

Categories
Specifications

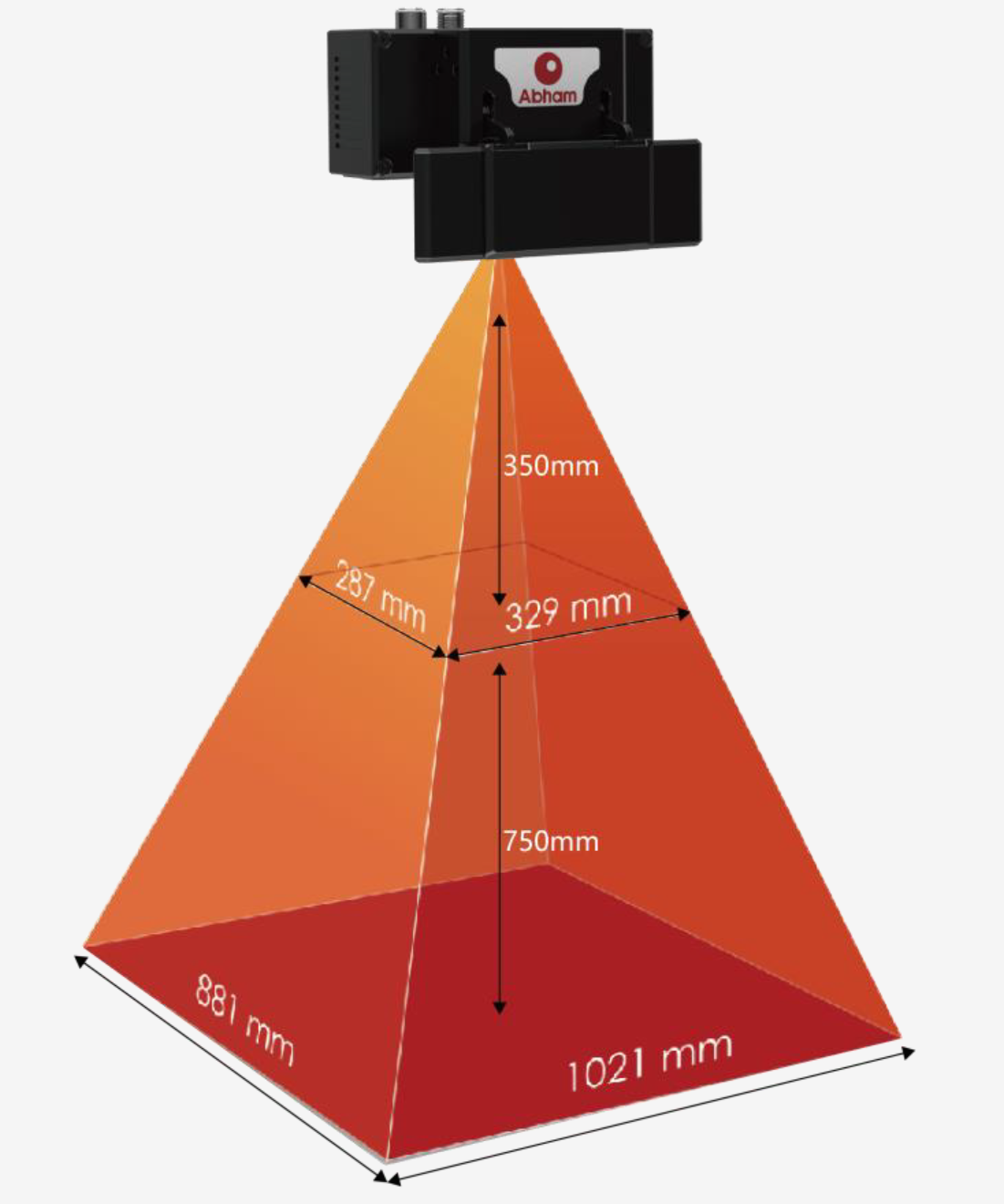

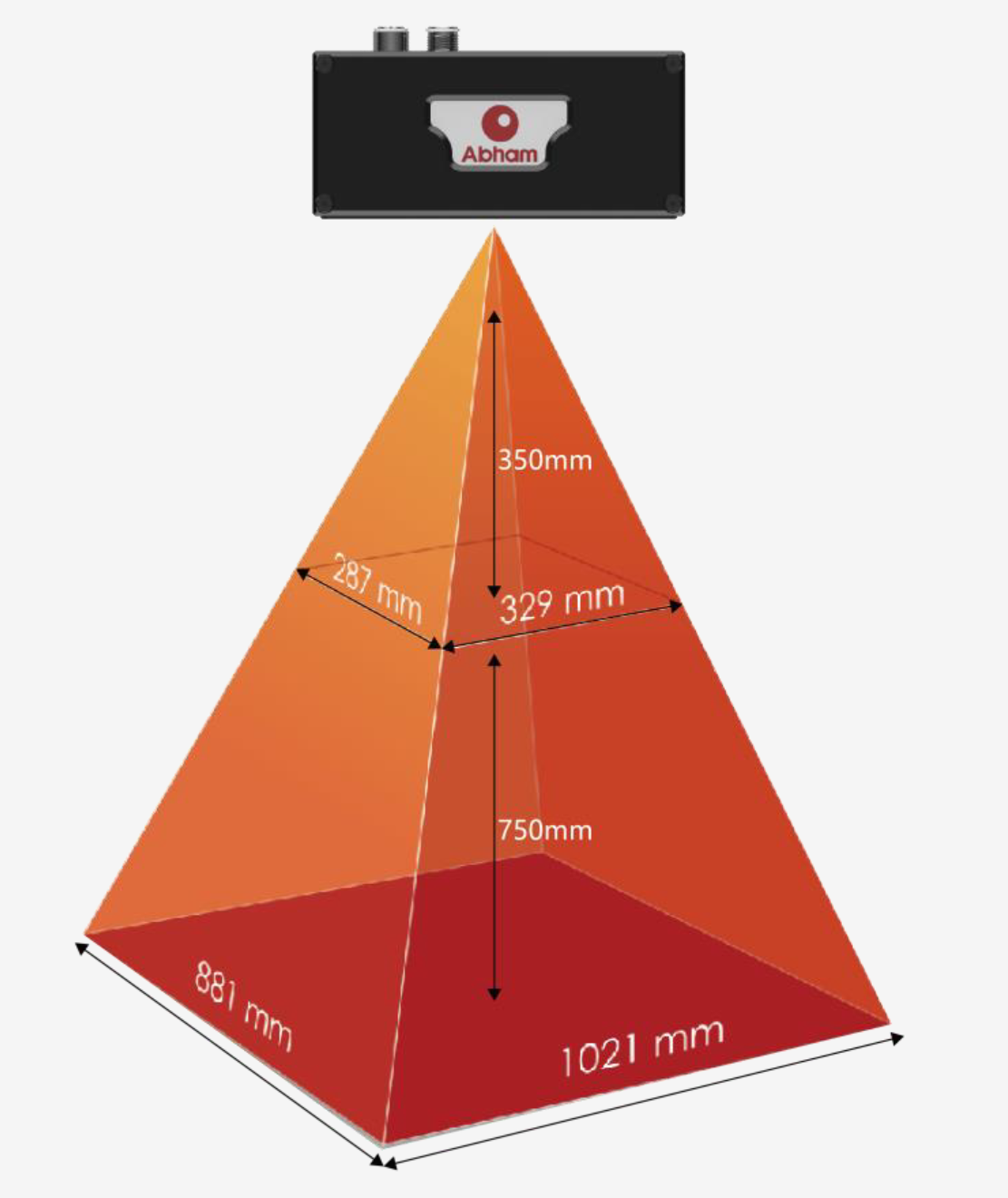

Near FOV (mm)
329mmx287mm@350mm
Far FOV (mm)
1021mmx881mm@1100mm
Working distance(mm)
350mm~1100mm
Point cloud resolution
1280 x 1024
Precision
< 0.05% @ 1100 mm
Point cloud frame rate
≤3Hz
Input
External power supply: 12V - 24V
POE power supply
Working current
1A
Data interface
GigE
TriggerSoft trigger/hardware trigger
Data type
Raw , depth, point cloud
Operating system
Windows / Ubuntu
Operating temperature
work temperature -10℃ ~ 70℃, recommended 0℃ ~ 50℃
Weight
694g
Security
Laser Class3R
Dimension
139 x 61.5 x 45mm

Nano mini

▶ Scene View

▶ Point cloud

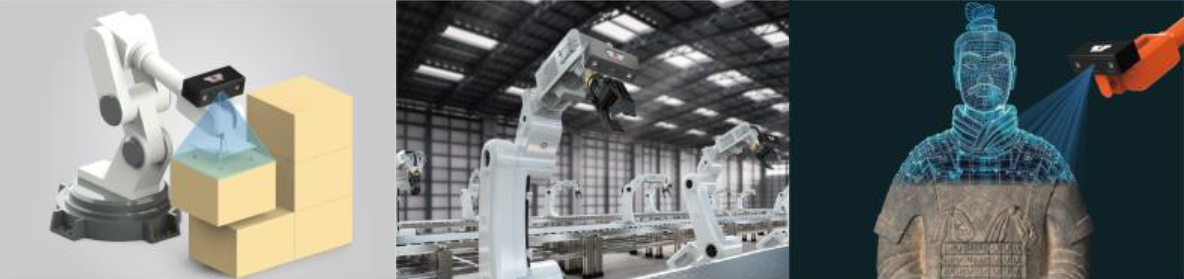

▶ application scene

3D Vision-Guided Depalletizing

Robot

3D reconstruction

▶ Parameters

Categories
Specifications
Near FOV (mm)
329mmx287mm@350mm
Far FOV (mm)
1021mmx881mm@1100mm
Working distance(mm)
350mm~1100mm
Point cloud resolution
1280 x 1024
Precision
< 0.05% @ 1100 mm
Point cloud frame rate
≤3Hz
Input
External power supply: 12V - 24V

POE power supply
Working current
1A
Data interface
GigE
TriggerSoft trigger/hardware trigger
Data type
Raw , depth, point cloud
Operating system
Windows / Ubuntu
Operating temperature
work temperature -10℃ ~ 70℃, recommended 0℃ ~ 50℃
Weight
482g
Security
Laser Class3R
Dimension
139 x 61.5 x 45mm

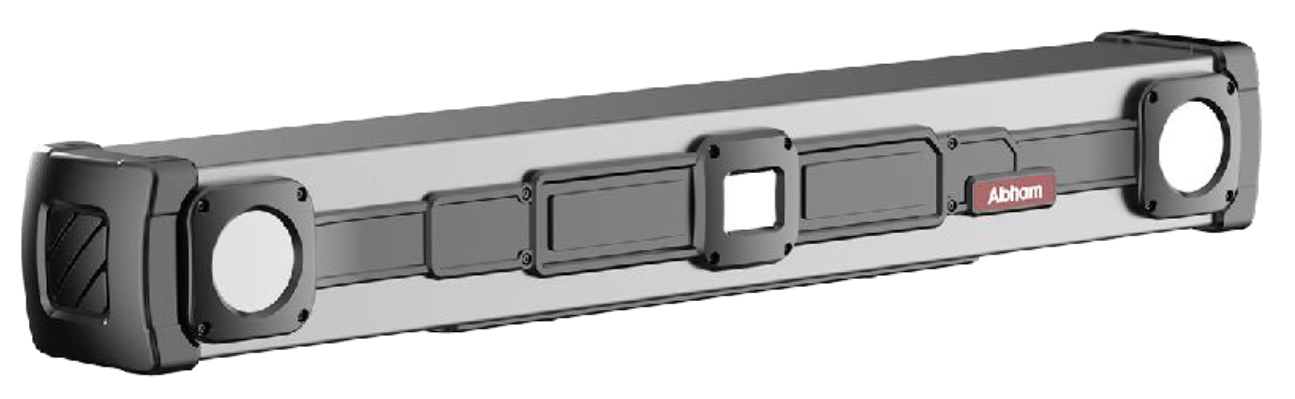

Super S

▶ Scene View

▶ Point cloud

▶ application scene

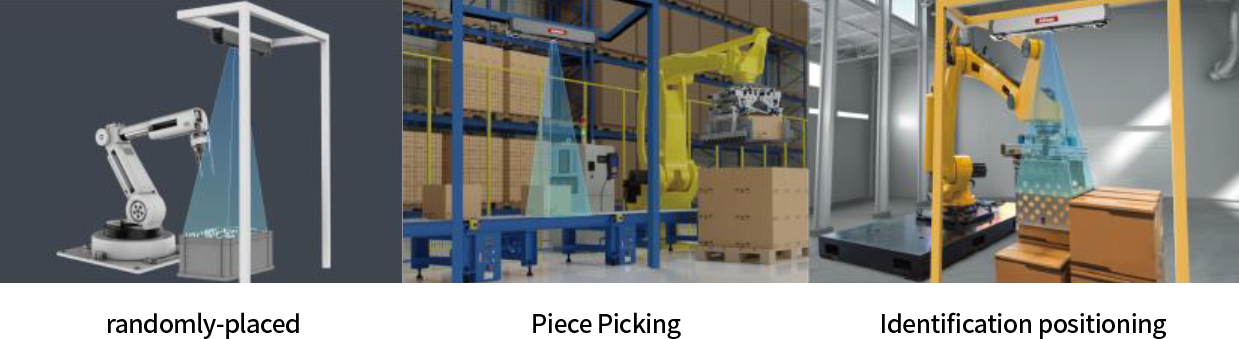

randomly-placed

Piece Picking

Identification positioning

▶ Parameters

Categories
Specifications

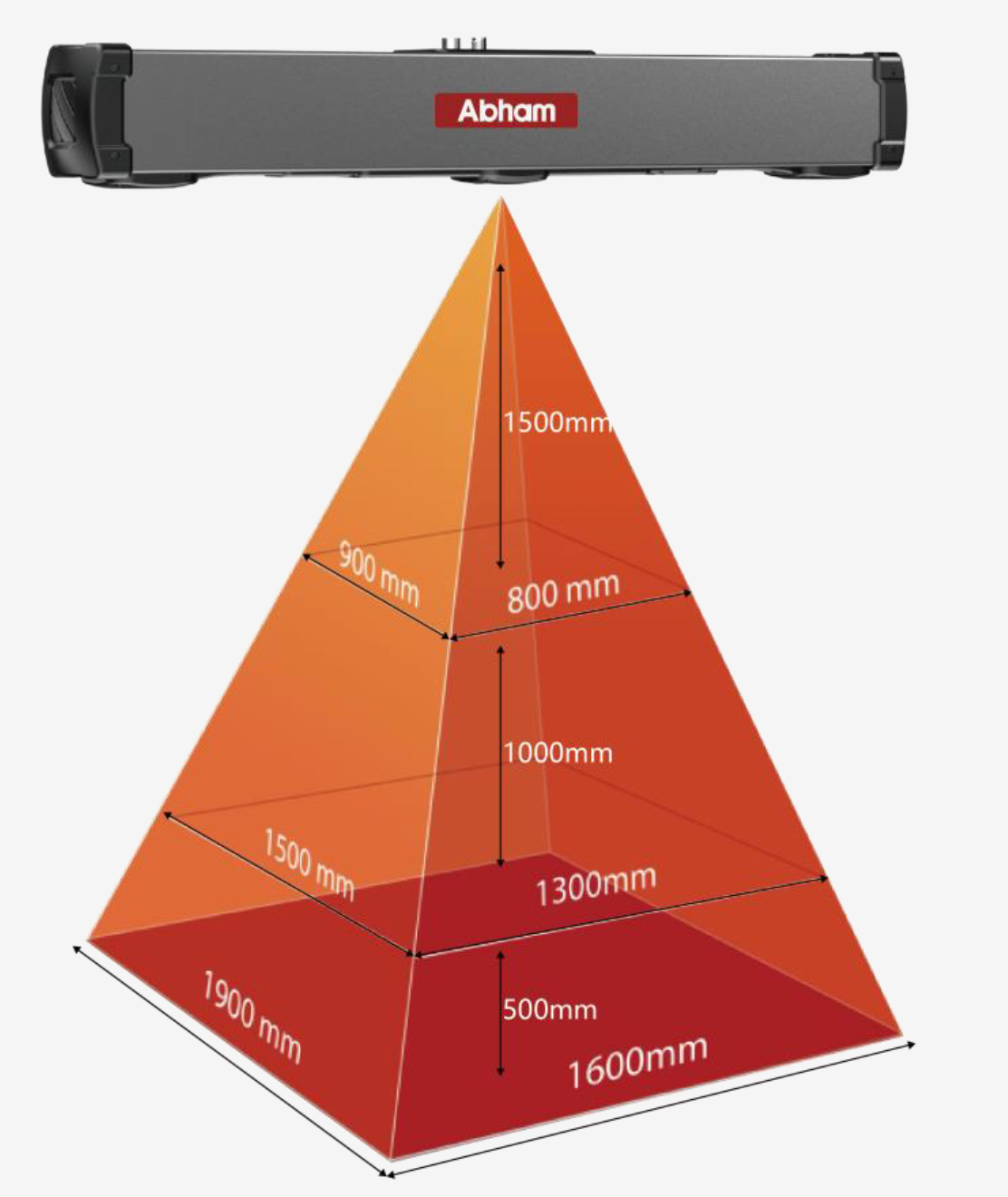

Near FOV (mm)
800x900mm@1500mm
Far FOV (mm)
1600x1900mm@3000mm
Working distance(mm)
1500mm~3000mm
Point cloud resolution
1752 x 1752
Precision
0.4mm
Point cloud frame rate
≤2Hz
Input
External power supply: 12V - 24V

POE power supply
Working current
2A
Data interface
Gigabit Ethernet
Trigger
Soft trigger/hardware trigger
Data type
Raw , depth, point cloud
Operating system
Windows / Ubuntu
Operating temperature
work temperature -10℃ ~ 70℃, recommended 0℃ ~ 50℃
Weight
Laser Class3R
Security
703.5 x 100 x 95mm（L*W*H)）

R&D ability


Optical Design

  • DOE Design
  • Optical collimator design
  • Laser galvanometer design
  • Camera optical system design

Hardware Development

  • AI chip system-level hardware development
  • FPGA system-level hardware development
  • USB, WIFI, Ethernet communication hardware development

Embedded Development

  • Hisilicon, Rockchip, Sigmastar, Ingenic Multi-platform embedded development

Algorithm development

  • 3D high-precision computational imaging
  • Super resolution algorithm

Application Software Development

  • C++, C#, QT multi-language
  • Win, Linux, ROS, Android  ,RTOS Multi-os software development

Image Tuning

  • MTK, Qualcomm, Hisilicon, Sigmastar, Rockchip IQ tuning

Speckle projectors - Design examples

Monocular Structured Light with Speckle - Development Example

Monocular Structured Light with Speckle - Development Example

Binocular Speckle Structured Light - Development Example

FPGA Camera main board

Qualcomm 660 Camera main board

AI SOC Camera main board

Intelligent hardware - development examples

Automatic Program-controlled internal

parameter calibration system

Glare test system P2020 standard

Time tester

High speed stroboscopic analyzer

Automatic card

switching bracket


Camera robot

Camera synthesizer

Image Quality Tuning - Laboratory resources

Image Quality Tuning - development example

Web Cam : 4K/2K, Win Hello,

AI Cam : Wifi Cam, Smart Cam

GMSL Camera : ADAS, Panoramic

Camera, DMS

3D ToF Camera : Smart projection,

with autofocus

Image Quality Tuning - development example

Main product


Metasense

▶ Parameters

Categories
Specifications
Infrared camera
FOV:81 ° *68 ° *46 ° (D*H*V)
LED lights
940nm
Laser projector
30,000 points, Random
Transmission interface
30Pin BTB CONN
Scope of work
30cm-120cm
Resolution
1280*800@30fps
Face recognition
Recognition speed :0.3S@ hot start,0.7S@ cold start
Recognition distance :0.3m∽1.2m
Live detection :TAR 98%@FAR 1/100,000
Face comparison :TAR 98%@FAR one part per million
Data interface
MIPI
Trigger mode
From 3.6 V to 5.5 V
Data type
Average power consumption 1W
Power & communication
USB2.0
Operating system support
RTOS
Operation temperature
Can work temperature -20℃ ~ 70℃, recommended 10℃ ~ 60℃
Security
Laser Class 1
Dimension
139 x 61.5 x 45mm

      ▶ Depth

      ▶ application scene

Nano Pro

▶ Parameters

Categories
Specifications
Near FOV (mm)
329mmx287mm@350mm
Far FOV (mm)
1021mmx881mm@1100mm
Working distance(mm)
350mm~1100mm
Point cloud resolution
1280 x 1024
Precision
< 0.05% @ 1100 mm
Point cloud frame rate
≤3Hz
Input
External power supply: 12V - 24V
POE power supply
Working current
1A
Data interface
GigE
Trigger
Soft trigger/hardware trigger
Data type
Raw , depth, point cloud
Operating system
Windows / Ubuntu
Operating temperature
work temperature -10℃ ~ 70℃,
recommended 0℃ ~ 50℃
Weight
694g
Security
Laser Class3R
Dimension
139 x 61.5 x 45mm

   ▶ Scene View

▶ Scene View

▶ Scene View

Nano mini

▶ Parameters

Categories
Specifications
Near FOV (mm)
329mmx287mm@350mm
Far FOV (mm)
1021mmx881mm@1100mm
Working distance(mm)
350mm~1100mm
Point cloud resolution
1280 x 1024
Precision
< 0.05% @ 1100 mm
Point cloud frame rate
≤3Hz
Input
External power supply: 12V - 24V

POE power supply
Working current
1A
Data interface
GigE
Trigger
Soft trigger/hardware trigger
Data type
Raw , depth, point cloud
Operating system
Windows / Ubuntu
Operating temperature
work temperature -10℃ ~ 70℃,
recommended 0℃ ~ 50℃
Weight
482g
Security
Laser Class3R
Dimension
139 x 61.5 x 45mm

   ▶ Scene View

▶ Point cloud

▶ application scene

Super S

▶ Parameters

Categories
Specifications
Near FOV (mm)
800x900mm@1500mm
Far FOV (mm)
1600x1900mm@3000mm
Working distance(mm)
1500mm~3000mm
Point cloud resolution
1752 x 1752
Precision
0.4mm
Point cloud frame rate
≤2Hz
Input
External power supply: 12V - 24V

POE power supply
Working current
2A
Data interface
Gigabit Ethernet
Trigger
Soft trigger/hardware trigger
Data type
Raw , depth, point cloud
Operating system
Windows / Ubuntu
Operating temperature
work temperature -10℃ ~ 70℃,
recommended 0℃ ~ 50℃
Weight
Laser Class3R
Security
703.5 x 100 x 95mm（L*W*H)）

   ▶ Scene View

▶ Point cloud

▶ application scene
